Extracorporeal shock wave as adjuvant therapy for wrist and hand spasticity in post-stroke patients: a randomized controlled trial

Egyptian Rheumatology and Rehabilitation volume 48, Article number: 21 (2021) Cite this article

Abstract

Background

Stroke patients often present with upper limb spasticity which impairs the functional status of patients. Recently, extracorporeal shock wave therapy (ESWT) is reported to be a safe, non-invasive, alternative treatment for spasticity. Many articles have been published on the effect of ESWT on lower limb spasticity, but only few of them had focused on upper limb spasticity, so the aim of this study is to evaluate the clinical and electrophysiological effect of ESWT on wrist and hand spasticity of chronic stroke patients and its impact on functional performance. In this monocentric study, forty chronic stroke patients with upper limb spasticity were recruited and randomly allocated into two groups. Both groups continued to receive conventional stroke rehabilitative program, while group I received three sessions of radial extracorporeal shock wave therapy (rESWT) 1 week apart.

Results

There was a significant decrease in wrist and hand spasticity after treatment and at follow-up in group I compared to group II (Modified Ashworth Scale after rESWT 1.45 ± 0.16, 2.90 ± 0.18 and follow-up 1.55 ± 0.13, 3.00 ± .0.15 in groups I and II, respectively). Also, there was a significant improvement of wrist control and hand function after treatment and at follow-up in group I compared to group II (p < 0.001). The improvement of pinch grip was noticed at follow-up with a significant difference relative to baseline in group I (p < 0.05). Hmax/Mmax ratio was significantly decreased at follow-up in group I compared to group II (p < 0.001).

Conclusion

ESWT is a valuable adjuvant treatment for spasticity of the hand and wrist in stroke patients which is reflected as improvement of functional activity.

Trial registration

ClinicalTrials.gov, NCT04312581. Registered on 18 March 2020.

Background

Spasticity is defined as “a velocity-dependent enhancement in muscle tone in response to passive stretching because of supraspinal disinhibition of stretch reflexes.” Post-stroke upper limb spasticity can be disabling and can result in some functional limitations, representing an example of maladaptive plasticity. The incidence of post-stroke spasticity is variable ranging from 20 to 40% and associated with a significant impact on patient’s functional status and quality of life [1]. Persistent pain, reduced mobility, contractures, and skeletal deformities are the drawbacks of spasticity that may limit the potential effect of rehabilitation. Therapeutic regimens for spasticity management depend on passive stretching, splints, antispastic drug, phenol, botulinum toxin (BTX) injection, physical modalities as electric therapy and ultrasound therapy, and surgery [2].

Extracorporeal shock wave therapy (ESWT) is defined as “a sequence of single, highly energetic, biphasic acoustic impulses characterized by rapid propagation of suddenly increased pressure in three-dimensional space.” Two types of ESWT are defined, focused (fESWT) and radial (rESWT); focused ESWT (fESWT) is generated by electromagnetic, electrohydraulic, and piezoelectric sources. In fESWT, the pressure increases rapidly from under 10 ns up to 100–1000 bars (energy absorption up to 12-cm depth). In the radial ESWT (rESWT), the pressure increases slightly up to 5 μs and reaching 1–10 bars (energy absorption up to 3 cm). So fESWT is more intensive than rESWT within the focal area of the highest energy exposure when rESWT has the superficial region of interest. The rESWT is less invasive than fESWT and more appropriate for physiotherapy purposes [3].

ESWT has been successfully used in orthopedic diseases such as tendinitis, epicondylitis, plantar fasciitis, and several inflammatory tendon diseases [4].

In the last 5 years, a few review studies have provided evidence to support the use of ESWT for the spasticity: one meta-analysis of clinical trials on all types of spasticity in patients after brain injury [5], two meta-analyses of randomized controlled trials (RCTs) on spasticity in post-stroke patients [2, 6], and one authorized narrative review on upper and lower limb spasticity in post-stroke patients [7]. Several studies have confirmed the use of ESWT in decreasing spasticity in patients with cerebral palsy [8,9,10,11,12,13] and multiple sclerosis [14].

The underlying mechanisms that explain the beneficial effects of ESWT on spasticity are still undefined. Previous studies have suggested the effect of ESWT on nitric oxides (NO) production [15], muscle fibrosis [16], spinal cord excitability modification [17], or affect the Golgi tendon directly which suppresses motor nerve excitability by inhibiting muscle spindle activity [18].

As many articles that have been published on the effect of ESWT were performed on the lower limb spasticity [8,9,10, 12,13,14, 19,20,21], only a few of them had focused on upper limb spasticity [22]. We aimed to evaluate the clinical and electrophysiological effect of extracorporeal shock wave therapy (ESWT) on the wrist and hand spasticity of chronic stroke patients and its impact on functional performance.

Methods

Study design

This is a prospective, single-center, double-blind randomized controlled parallel-group trial. Ethical approval for this study was obtained from the ethics committee of Tanta. University Faculty of Medicine (approval number: 33693/2/20).

Study setting

Patients were selected from the outpatient clinic of Physical Medicine, Rheumatology and Rehabilitation Department of Tanta University Hospitals, Egypt.

Participant

This study was carried out on forty chronic stroke patients who presented at the time of study with upper limb spasticity at different degrees. The sample size estimation was performed using the G-Power 3.1.9.2 software. It was found that 11 individuals for each group must have been recruited to have 85% power with 5% type 1 error level. The average expected value in the first group was − 0.5 (with a standard deviation of 0.09), and the average expected value in the second group was 0.05 (with a standard deviation of 0.05) based on the previous research conducted by Li et al. evaluating the effect of radial shock wave therapy on spasticity of the upper limb in patients with chronic stroke.

Informed written consent from all patients was obtained in accordance with the local ethical committee. Privacy of all patients’ data was granted as there was a code number for every patient file.

Inclusion criteria

Patients with chronic stroke with a disease duration of more than 1 year were included in the study with a stable Modified Ashworth Scale for upper limb spasticity ranged from 1+ to 4.

Exclusion criteria

Patients more than 65 years (to limit the effect of age on muscle bulk and power); patients with double stroke; patients with fixed contractures of the wrist and hand; patients who had received antispastic measures (botulinum toxins, nerve block) within 6 months; patients with contraindication to extracorporeal shock wave therapy, i.e., malignancy at the treatment area, coagulopathies, and active infection (viral or TB); patients with oral anticoagulants and bleeding wounds; and patients with pacemakers.

Randomization

The patients were randomly divided into two groups (20 patients for each) by using a computer-generated random number of sequences. The group assignment was recorded on a card. This card was folded in half such that the label with the patient’s group assignment was on the inside of the fold. The folded card was then placed inside the envelope, and the envelope was sealed.

Interventions

First group

The first group received three sessions of radial extracorporeal shock wave therapy (rESWT) 1 week apart, 2000–3000 impulses at 0.25–0.84 mJ/mm2 with a pressure 2.8 bar and 15 Hz frequency. rESWT was applied on flexor carpi ulnaris, flexor carpi radialis, flexor digitorum muscles nearly at the midpoint of their fleshy part, intrinsic hand muscles, and tendons of flexor digitorum on the palm. The patients continued their medical treatment and conventional rehabilitation program.

Second group

The second group received conventional rehabilitation in form of range of motion exercise of upper limb joints; passive stretching exercise for fingers, wrist, and elbow flexors; and occupational therapy, in addition to medical treatment for spasticity management. The patients in both groups received the same conventional rehabilitation program: three sessions/week (45 min each session) for the whole period of the study till the time of follow-up.

Outcome measurements

Patients were examined by the same physiatrist, who was blinded to the randomization and treatment procedure. The evaluation was performed at the baseline, 2 weeks, and 3 months after the last session of rESWT as a follow-up.

Modified Ashworth Scale (MAS) [23]

Scoring (taken from Bohannon and Smith [23]) is a valid scoring system for spasticity; it consists of six grades {0 no increase in muscle tone; 1 slight increase in muscle tone, manifested by a catch and release or by minimal resistance at the end of the range of motion when the affected part(s) is moved in flexion or extension; 1+ slight increase in muscle tone, manifested by a catch, followed by minimal resistance throughout the remainder (less than half) of the range of motion (ROM); 2 more marked increase in muscle tone through most of the ROM, but affected part(s) easily moved; 3 considerable increase in muscle tone, passive movement difficult; 4 affected part(s) rigid in flexion or extension}. Grade 1+ was pointed as 2 in the study; therefore, 1 point was added to each of the following grades, so the scale was pointed from 0 to 5. The patient was supine with the elbow as straight as possible and the wrist was moved passively from flexion to extension.

Fugl-Meyer Assessment (FMA) [24]

The FMA assesses motor function recovery after stroke and consists of 33 and 17 performance items in the upper and lower limbs, respectively. The scores range from 0 (unable to perform), 1 (partial ability to perform), to 2 (near-normal ability to perform). The items that measure wrist control and hand function have been revealed to have excellent intrarater reliability and high interrater reliability [25].

Motricity Index [26]

The Motricity Index can be used to assess the motor impairment in a patient with stroke; only one item (pinch grip) was tested using a 2.5-cm cube between the thumb and forefinger and the score was graded as:

  • 0 no movement

  • 11 beginnings of prehension (any movement of fingers or thumb)

  • 19 able to grip cube but not hold it against gravity

  • 22 able to hold cube against gravity but not against a weak pull

  • 26 able to hold the cube against a weak pull but strength is weaker than normal

  • 33 normal pinch grip

The validity of the Motricity Index for the upper extremity is supported by the high degree of association between its components and its correlation with both grip strength and a measure of upper extremity function [27].

Electrophysiological assessment of spasticity by Hmax/Mmax amplitude ratio

Nihon Kohden neuropack 2 electromyography (EMG) machine, 2 channel, surface electrodes were used. H reflexes occur consistently in a variety of upper extremity muscles during an isometric contraction. Hmax/Mmax amplitude ratio was obtained from the patient’s spastic upper limb. Flexor carpi radialis muscle (FCR) which was the recording site with active electrode placement was placed at a point between the proximal one-fourth and the distal three-fourths (recording point) on a line between the medial epicondyle of the humerus and the styloid process of the radius, reference over its tendon. The ground electrode was put between the recording electrode and the stimulator. Submaximal stimulation was done for the median nerve between the biceps brachii and brachialis muscles at the elbow using a bipolar stimulator with the cathode proximal to the anode [28]. After that, supramaximal stimulation was done (at the same previous site of stimulation with the cathode distal to the anode) to produce the maximal direct muscle (M) response from FCR. The H/M ratio was calculated as each value is a mean of three consecutive values of both H reflex and M response. The Hmax/Mmax ratio is a reliable measure of the α motor neuron excitability [29].

Statistical analysis

Data were fed to the computer and analyzed using IBM SSPS software package version 20.0 (Armonk, NY: IBM Corp.). Qualitative data were described using number and percent, and quantitative data were described using range, mean, standard deviation. The significance of the obtained results was adjusted at the 5% level.

A paired t test was used for normally distributed quantitative variables, to compare between two periods, and a Student t test to compare between two studied groups. Statistical significance was set at p ≤ 0.05 [30].

Results

Participants

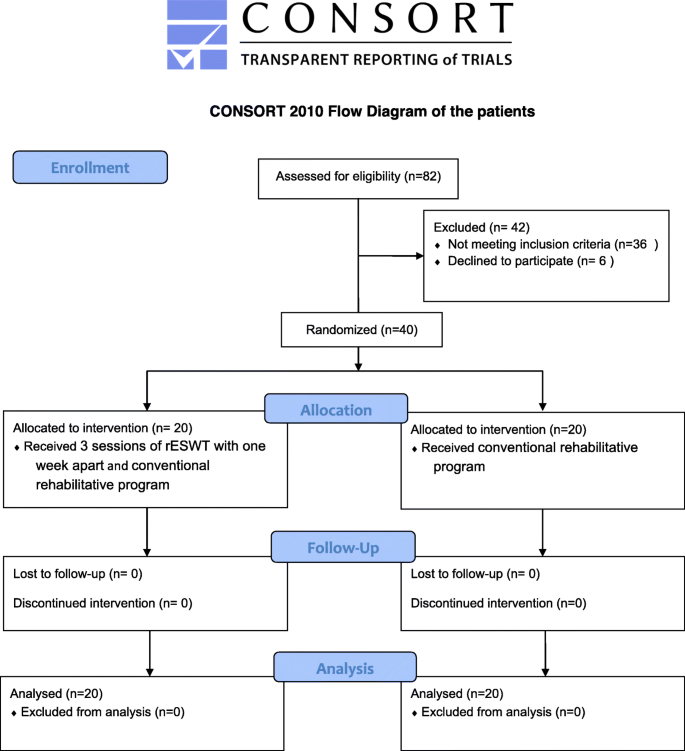

The flow diagram of the patients who participated in this study is shown in Fig. 1. The demographic and clinical data of patients are listed in Table 1. Both groups showed no significant difference regarding Modified Ashworth Scale (MAS) for wrist and hand muscles, Fugl-Myer Assessment (FMA) for wrist control and hand function, and Motricity Index at the baseline.

Fig. 1
figure 1

The flow diagram of the patients

Full size image
Table 1 Demographic and clinical data of the studied groups showing that the two groups are matched regarding patient’s age and disease duration
Full size table

Outcome measurements

There was a significant improvement of MAS and FMA at 2 weeks after rESWT and at 3-month follow-up in the first group compared to the second. Also, there was a significant improvement of MAS and FMA in patients of the first group after treatment and at follow-up relative to baseline, but there was no significant difference at follow-up compared to after treatment except for hand function of FMA. Patients of the second group showed no significant change at the two periods (Tables 2 and 3).

Table 2 Modified Ashworth Scale (MAS) for the wrist and hand in the studied groups at baseline, after rESWT, and at follow-up showing significant improvement in GI after receiving rESWT therapy relative to baseline and also a significant improvement in comparison to GII
Full size table
Table 3 Fugl-Myer Assessment (FMA) of hand function and wrist control and Motricity Index (pinch grip) in the studied groups at baseline, after rESWT, and at follow-up showing significant improvement of FMA in GI after receiving rESWT therapy relative to baseline and in comparison to GII and significant improvement of Motricity Index at follow-up period in GI
Full size table

Regarding Motricity Index for pinch grip, there was no significant difference between patients of both groups after treatment and at follow-up; however, the only significant improvement of this index was recorded at the follow-up period when compared to baseline in the first group (Table 3).

Hmax/Mmax ratio was significantly decreased at follow-up in patients of the first group (Fig. 2) compared to the second but not after treatment. Also, this ratio was significantly decreased after the treatment and at follow-up in the first group (Table 4).

Fig. 2
figure 2

H reflex in group I. a Before treatment. b Two weeks after treatment. c Follow-up (3 months after treatment)

Full size image
Table 4 Hmax/Mmax ratio in the studied groups at baseline, after rESWT, and at follow-up showing a significant decrease of Hmax/Mmax ratio in GI after rESWT therapy relative to baseline and significant improvement in comparison to GII at follow-up
Full size table

Figure 2 shows H reflex in group I before treatment, 2 weeks after treatment, and at follow-up with H/M ratio 0.84, 0.67, and 0.40 before treatment, 2 weeks after treatment, and at follow-up, respectively.

No adverse events were observed in either group.

Discussion

The present study suggests that rESWT has a beneficial effect on spasticity and functional status of the upper limb (using Fugl-Meyer Assessment for hand function and wrist control and Motricity Index for pinch grip).

Neuronal plasticity can lead to an extreme degree of spontaneous recovery of early stroke patients in few months. However, neural plasticity concerning compensatory movement, activated ipsilateral motor projections, and competitive interaction after stroke contributes to maladaptive plasticity, which negatively affects motor recovery. Rehabilitation programs should be selected according to the motor impairment of stroke patients to minimize maladaptive plasticity [31]. We conducted this study on patients with a disease duration of more than 1 year aiming to investigate the individual effect of treatment regimens on spastic muscles.

Despite no established standard guidelines, several mechanisms could explain the therapeutic role of ESWT in spasticity; nitric oxides (NO) generated by ESWT are involved in neurotransmission, memory formation, neuromuscular junctions, and synaptic plasticity in the central nervous system [4]. Similar to the inhibitory action of botox (BTX) on neuromuscular transmission, Kenmoku et al. observed rapid degeneration of acetylcholine receptors after ESWT application but without muscle weakness. Also, the amplitude of the compound muscle action potential was significantly decreased immediately after ESWT and lasted for 8 weeks in an animal study [32].

Modification of spinal excitability is another mechanism; as abnormal stretch reflexes may not completely explain the development of spasticity, the effects of ESWT on spinal excitability may support the idea that ESWT acts on nonreflex hypertonia [33]. Although having a temporary effect, mechanical vibration could be attributed as a contributing factor decreasing spinal excitability [16]. Structural and mechanical changes in the spastic muscle lead to fibrosis of inactive connective tissue. ESWT in the long run can diminish spasticity by reduction of fibrosis of chronic hypertonic muscles [2, 16].

Dymarek et al. [34] revealed a significant reduction in MAS in 20 patients with upper limb spasticity treated with a single session of rESWT. Li et al. [35] reported a significant reduction in spasticity of the hand and wrist for at least 16 and 8 weeks in the group receiving 3 sessions of rESWT and in the group receiving a single session of rESWT, respectively. Three sessions of rESWT had a longer-lasting effect than one session.

Coinciding with the previous data [34, 35], MAS for clinical assessment of the wrist and hand muscle spasticity in stroke patients pointed out significant improvement after treatment and at follow-up compared to baseline in the first group with a significant difference between the two groups (Table 2).

FMA for wrist control and hand function was our tool to assess the sensorimotor function of the wrist and hand in this study; improvement of functional ability was noticed in the first group relative to the second one after treatment and at follow-up with significant differences. Also, there was a significant improvement in patients of the first group after treatment and at follow-up relative to baseline.

Spastic hand muscles may serve as a reasonable factor for an average hand grip more than weak muscles; this can explain the results of the Motricity Index for pinch grip after treatment, where there was no significant change after treatment and at follow-up between both groups, with significant improvement at follow-up period when compared to baseline in the first group.

Few studies measured the motor functional outcome of the upper limb in spastic stroke patients. Troncati et al. [36] revealed significant improvement of FMA of twelve patients with stroke after treatment with two sessions of ESWT, and the effects were maintained 3 and 6 months after treatment.

In a prospective randomized, single-blind controlled trial by Li et al. [35], a significant improvement in FMA scores for hand function and wrist control after three sessions of rESWT was maintained for 16 and 12 weeks, respectively, compared with those of sham or one session of rESWT group and there was no significant improvement in FMA scores after one session of rESWT compared with sham control, indicating that repeated sessions of ESWT are necessary to ameliorate functional motricity. Thus, clinical experience indicates repeated sessions of ESWT could be superior to a single application. Li et al. [35] confirmed that repeated sessions of rESWT result in a more noticeable and longer-lasting effect.

In 1974, Deschuytere and colleagues [37] showed resting H reflexes in the flexor carpi radialis (FCR) and palmaris longus in most of their volunteers. H reflex amplitudes are increased with respect to maximal M responses recorded in the spastic muscle as a result of enhanced excitability in the monosynaptic stretch reflex arc [38].

Our results revealed a significant reduction in Hmax/Mmax amplitude ratio at follow-up in the first group with a significant difference between the two groups at follow-up (Table 4); these results pointed out the delayed effect of ESWT on reflex arc excitability.

The effect of ESWT on spinal excitability and Golgi tendon organs to suppress motor nerve excitability can be a reasonable mechanism. One recent study revealed a reduction of the Hmax/Mmax ratio after ESWT indicating a change in alpha motor neuron excitability [39]. Other studies revealed that no significant changes of F wave or H wave latency or amplitude were demonstrated in human studies after ESWT application [40, 41].

To our knowledge, this study is the first one using combined different assessment measures (clinical and electrophysiological) to evaluate the effect of radial extracorporeal shock wave therapy (rESWT) on wrist and hand functions of spastic chronic stroke patients.

Some limitations of this study should be considered as relatively small sample size of patients and short duration of follow-up to reveal the sustained effects of this modality of treatment. More studies are needed with more flexible inclusion criteria for the disease duration to include spastic patients during the first year to prevent the development of maladaptive plasticity. Also, more research should be done to see if the rESWT could substitute other modalities of spasticity treatment such as the muscle relaxant and botox injection.

Conclusions

ESWT is a valuable adjuvant treatment for spasticity of the hand and wrist in stroke patients which is reflected as improvement of functional activity.

Recommendation

rESWT is recommended as adjuvant physical treatment if the muscle relaxants failed to achieve the desired effect or had side effects or contraindications.
